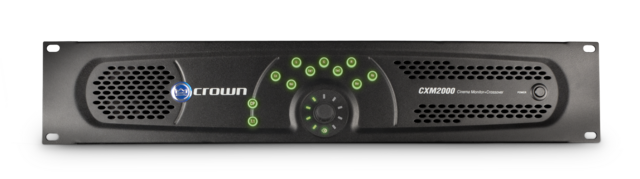

Crown's CXM2000 is a Cinema Monitor and Crossover System. With the CXM2000, audiences can enjoy wonderful sound from JBL cinema speakers. When used with Crown amplifiers, it allows for either processor input signal or amplifier output signal monitoring, which immediately indicates when a signal path has a problem. The fault signal can also be passed to TMS (Theater Management System), so the cinema manager can check the audio system working status without leaving his office. All necessary controls for daily operation of the CXM2000 are easily accessible on the front panel. This device will significantly improve the speaker audio performance and offer peace of mind in the operation of a theater system. Crown CXM2000, Crown cinema amplifiers and JBL cinema speakers constitute the Harman total solution for cinema owners who share the same goal of introducing stable and high-quality movie-watching experience with HARMAN.
• Built-in speaker monitors the processor input and amplifiers output signals.
• Onboard JBL cinema speaker parameters include crossover, EQ filters, delay, and more to enhance speaker’s performance.
• Fault detection indicates faults on the front panel and sends alarm signals to Theater Management System (TMS).
• Total solution designed to work with JBL passive and bi-amplified cinema speakers in systems using Crown DSi and XLC amplifiers.
• Lit buttons offer easy operation in dark rooms.
• HD-25 connectors and HD-15 connectors for quick and hassle-free connectivity.
CXM 2000 Cut Sheet
updated: Mar 21, 2021
CXM 2000 Owner's Manual
updated: Mar 21, 2021
Declaration Of Conformities
CXM 2000 Declaration of Conformity
updated: Oct 22, 2020
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
|AC Line Voltage and Frequency Configurations Available||(+/- 10%) 100~120V / 220~240V 50/60 Hz, 50W|
|Processor Input Channels||8 inputs|
|Input Impedance||(Processor inputs) > 10 kΩ; (Power amplifier inputs) >10 kΩ|
|Signal to Noise Ratio||104 dB (A-Weighted)|
|Crosstalk||>85 dB (A-Weighted)|
|Internal Monitor Speaker Power||8W|
|DSP Section||DSP for left, right and center channel speakers|
|Dimensions||19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)|
|Weight||8.3 lbs (3.75 kg)|
|Shipping Weight||10.7 lbs (4.85 kg)|
|IEC Power Connector||15A|
