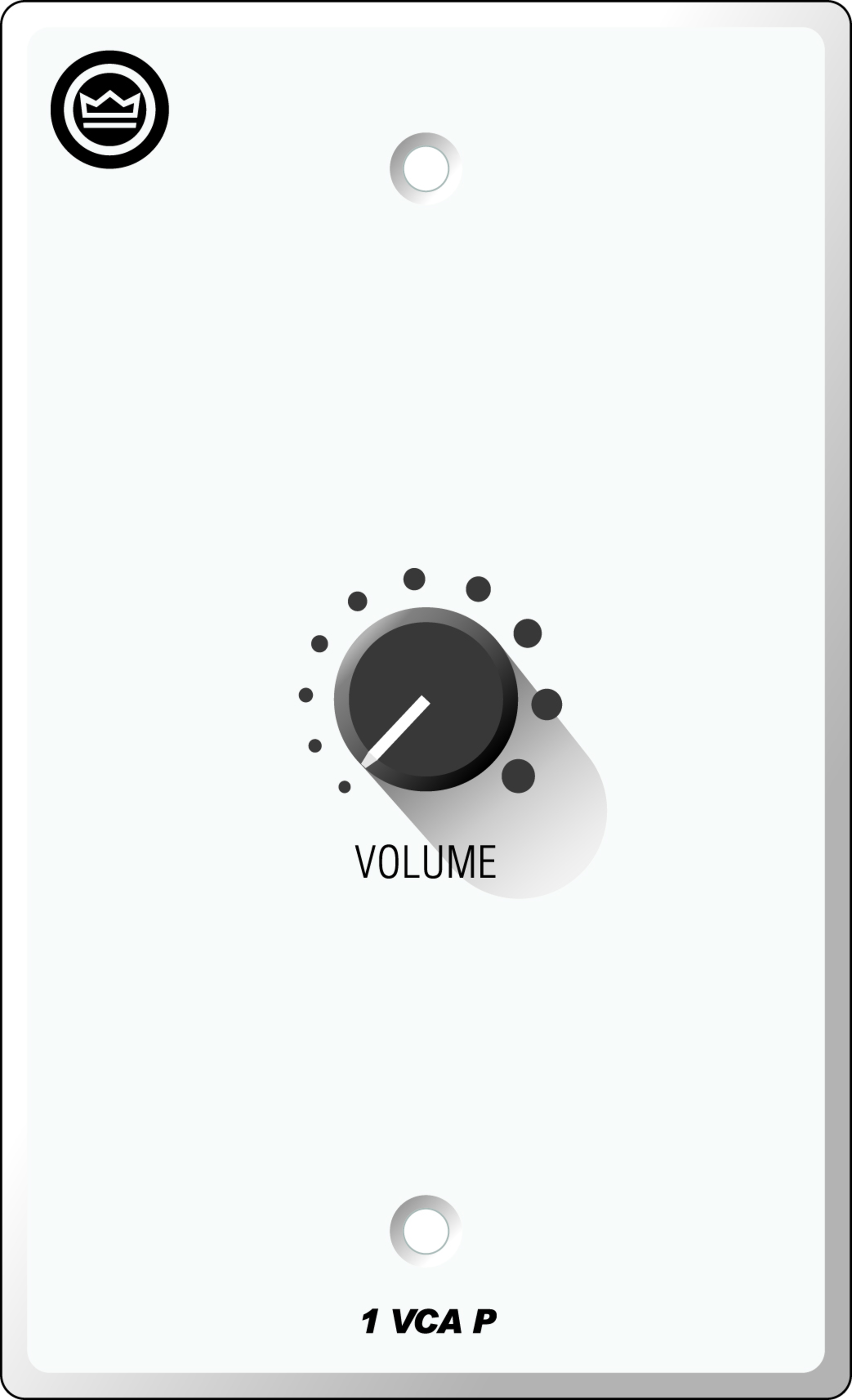

1-VCAP (discontinued)

Single-gang VCA Wall Control

Larger Images

The 1-VCAP and 4-VCAP wall-mounted panels provide remote volume control for one or more VCA-controlled channels. The 1-VCAP is a 1-gang panel with one potentiometer, and the 4-VCAP is a 2-gang panel with four potentiometers.

The potentiometers on the panel are wired directly to the VCA connectors on the VCA-MC module accessories for CTs 4- and 8-channel amplifiers, or to the VCA connections on Commercial Audio Series products.


  • Provides remote volume control for one or more CTs amplifier channels
  • Fits inot a 1-gang electrical box


  Version Language Size Uploaded
file type icon 1-VCAP Cut Sheet
updated: Nov 2023
    138 KB Nov 2023
file type icon 1-VCAP Owner's Manual
updated: Nov 2023
    689 KB Nov 2023

If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.


Number of Potentiometers 1
Potentiometer Resistance 5 k ohms
Pins VCA, GND, +10V
Weight 3.0 oz (85 g)
Dimensions 2-1/2 in X 4-1/2 in (6.4cm X 11.4cm) (Fits inot a 1-gang electrical box.)
