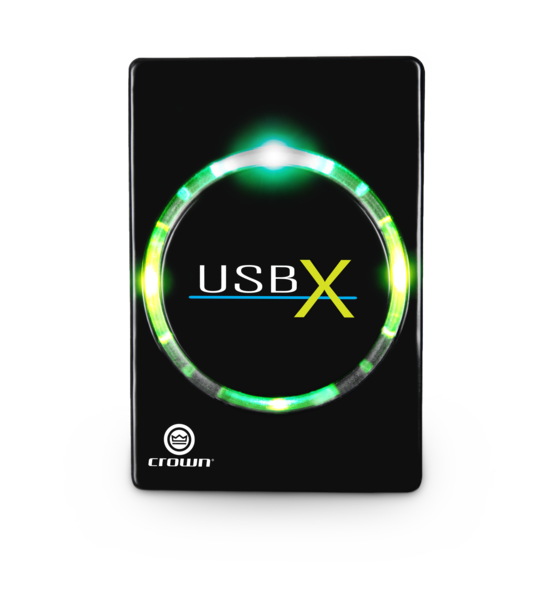

A built-in Wi-Fi access point allows USBX to become a powerful and convenient tool for managing Crown XTi, CDi, DSi devices via the Powered by Crown iOS application. The primary intended use of USBX is as an interface to Crown USB-enabled amplifiers which connect either directly, or via a downstream USB hub, to a USB port on USBX. Then the amplifiers can be accessed via the RJ45 gigabit Ethernet port on USBX, or wirelessly via the wireless access point which is built into USBX.
Larger Images
Features
- Completely self-contained unit easily integrates into existing systems that include Crown XTi, CDi, and DSi amplifiers
- Perfect for mobile PA systems, movie theaters, small to medium fixed installations and more
- For quick access to adjusting levels and monitoring I/O meters, use an iDevice with the Powered by Crown app to instantly communicate with attached amplifiers over Wi-Fi with USBX
- For power users, use the built-in wireless access point or the 1Gbps wired Ethernet connection on USBX to control USB-connected amplifiers via a computer running System Architect
Downloads
| Size | ||||
USBX Cut Sheet
updated: Sep 2023
|
1.47 MB | |||
|
USBX Quickstart Guide
updated: Sep 2023
|
1.52 MB | |||
Software | ||||
HiQnet Audio Architect™
updated: Dec 2021
|
||||
Declaration Of Conformities | ||||
|
USBX Declaration of Conformity
updated: Oct 2020
|
78.7 KB | |||
System Technology Bulletins | ||||
|
STB USBX Basic Set Up #0001
updated: Oct 2020
|
1.54 MB | |||
Application Guides | ||||
|
USBX Multiroom Hybrid
updated: Oct 2020
|
1.36 MB | |||
|
USBX Portable PA Hybrid
updated: Oct 2020
|
1.48 MB | |||
If any of the links above result in strange characters in your browser, please right-click the file to save it to your computer.
Specifications
| Connectors | 1 GB/s wired Ethernet via RJ45 connector, 802.11 b/g/n wireless Ethernet via built-in WAP |
| Input | 100-240VAC/50-60HZ Max 20W |
| Power Consumption | 5VDC/3.0A Max |
| Controls | Supports fully featured monitoring and control of up to 8 USB-enabled Crown amplifiers. This includes XTi2, DCi, and DSi. |
