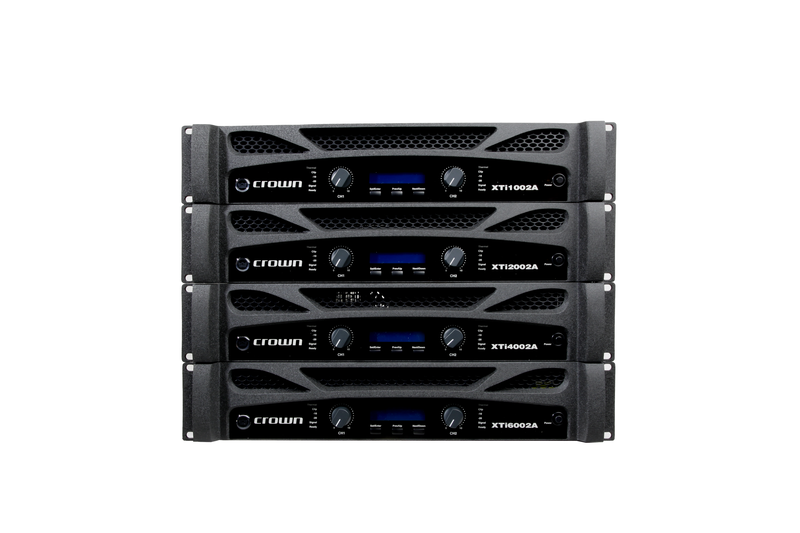

Xti 2.5 series front straight on lightbox
Larger Images

XTi 6002A

(China Only)

Overview
Features
Specifications

XTi 2.5 Power Matrix

Recommended for: Portable PA.

• Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack,and release


• Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning


• 3 user-defined fan mode controls — normal, early and fullspeed — for matching fan performance to a specific application


• New system monitoring provides software visibility of AC line voltage and power supply temperature


• Increased number of presets to a total of 50 presets; 49 of which are user defineable


• Integrated cast-aluminum handles for easy handling and enhanced durability


• Locking power cord clip provides a secure connection between the amplifier and power cord


• Updated HiQnet System Architect™ control software

Sensitivity 1.4Vrms
Signal to Noise Ratio 103dB
THD 0.5% / 1%
Intermodulation Distortion = / < 0.35%
Frequency Response 20Hz - 20kHz, +0 / -1dB
Crosstalk >70dB 20Hz - 1kHz
Damping Factor > 500
AC Line Voltage 220 - 240VAC 50/60Hz
Dimensions 89 mm x 482 mm x 411 mm
Net Weight 19.5 kg
Shipping Weight 21.5 kg
